10(B+G+9) storied apartment design.

Report

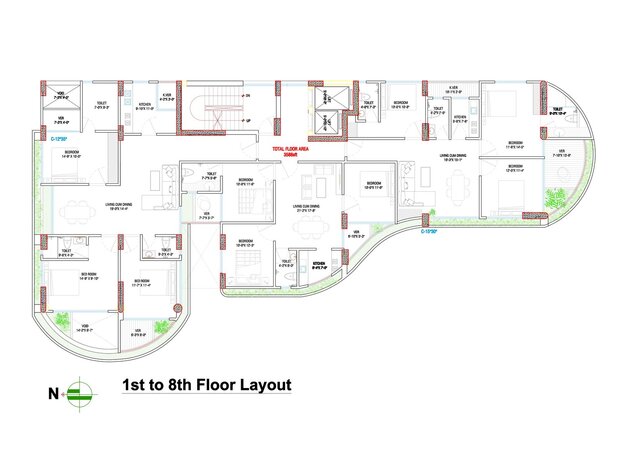

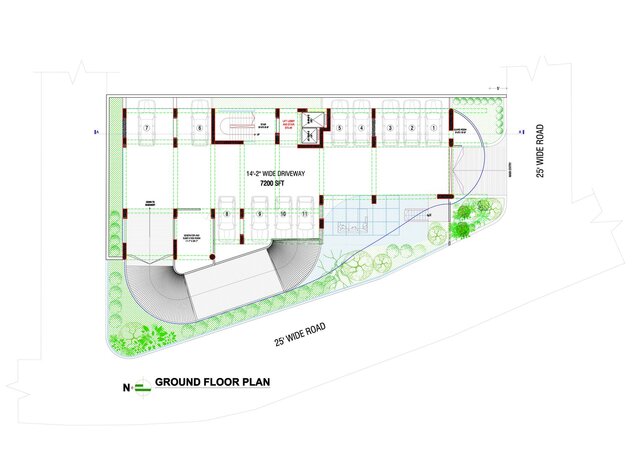

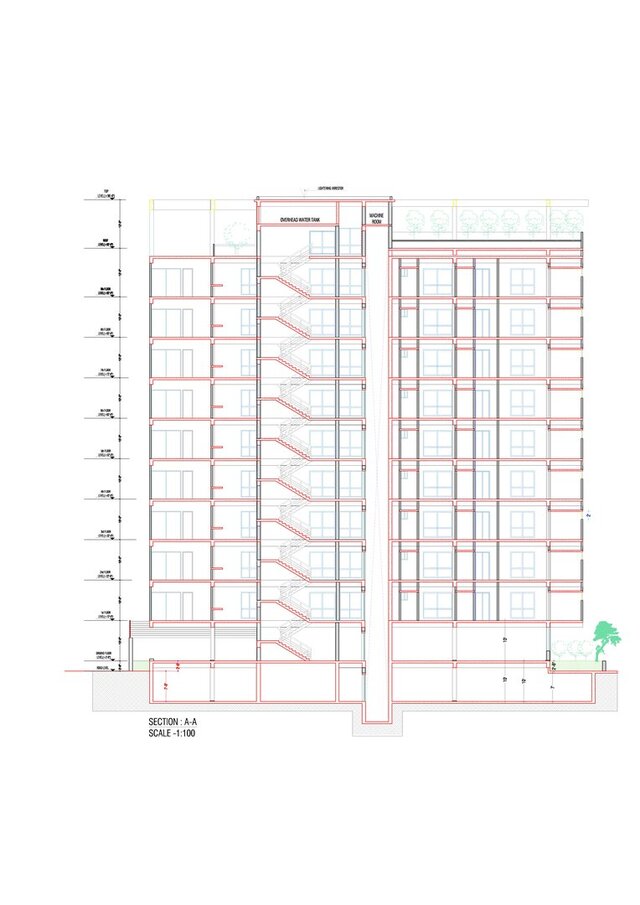

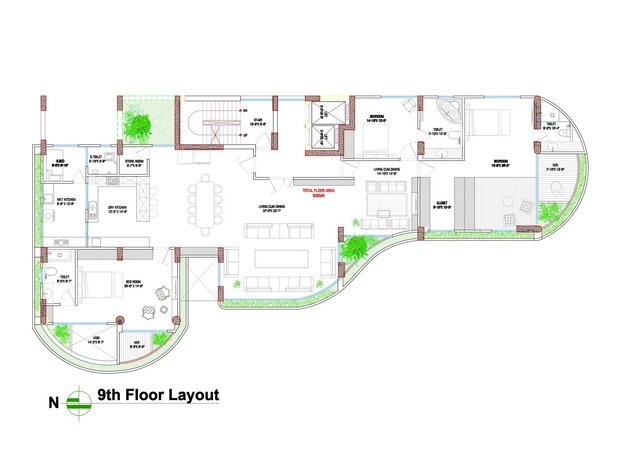

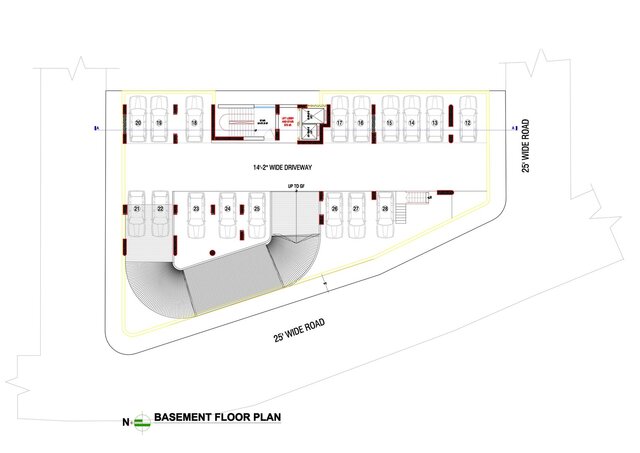

I prepared this structural drawing using AutoCAD for a 10(B+G+9) storied apartment project. This professionally drafted 2D plan showcases a modern 10-storied residential building with efficient space planning and functional layout. Each floor is carefully designed to maximize living comfort, featuring well-organized rooms, circulation paths, and utility areas. Ideal for urban housing developments, this drawing ensures clarity, precision, and ease for construction and approval processes.
