1" Brass Ball Valve Assembly | SolidWorks | BOM

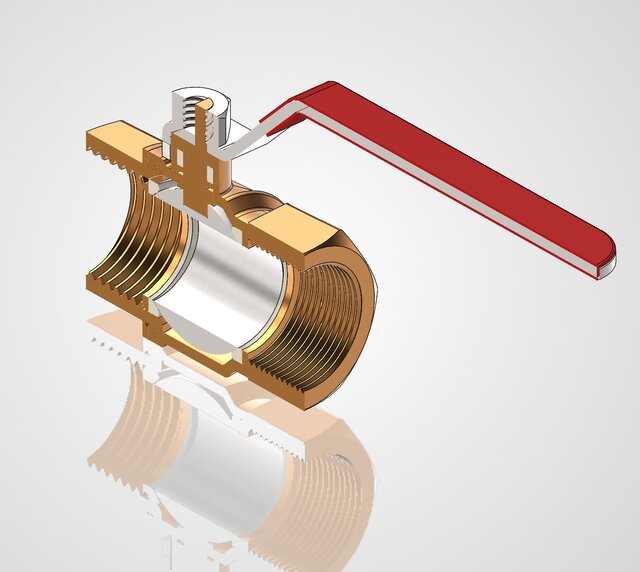

Full 1" brass ball valve assembly modeled in SolidWorks. Comprises 9 components including brass body, SS316 ball and stem, PTFE seats and gland seal, carbon steel lever and hardware. Delivered complete engineering package: photorealistic renders, isometric cutaway section view, exploded view animation, handle motion study demonstrating open/close operation, and fully dimensioned assembly drawing with BOM per ASME Y14.5. All documentation in imperial units.
