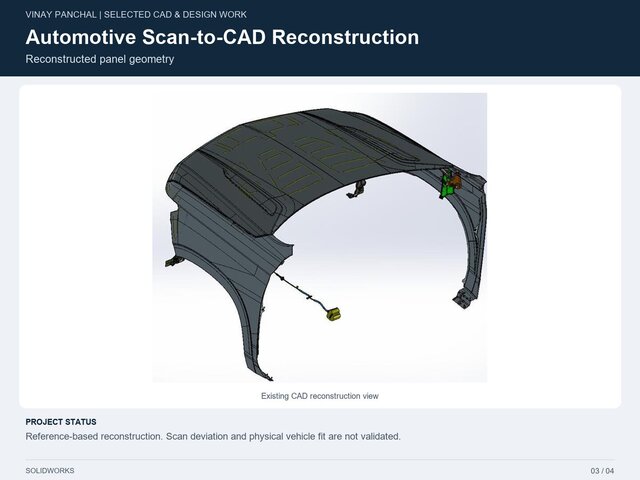

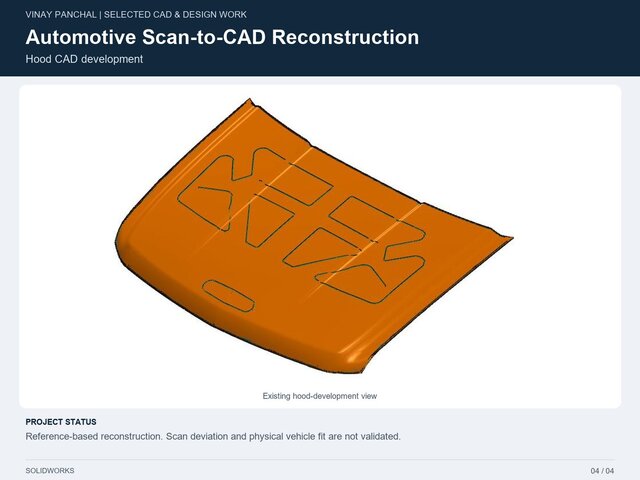

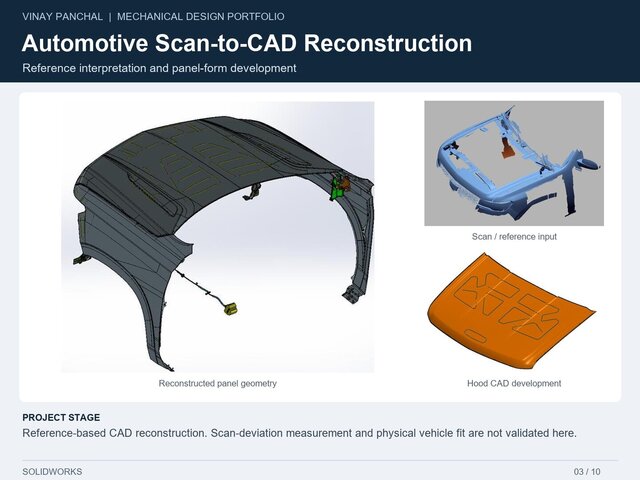

Scan/reference-based CAD reconstruction of automotive hood and front-panel geometry. The images compare the reference input with developed panel forms, demonstrating surface interpretation and CAD organization for further design work. Measured scan deviation and physical vehicle-fit validation are not included. This presentation does not claim vehicle-manufacturer affiliation.
